Industrial Touch Panel Computers for HMI, SCADA & Process Control
All-in-one HMI solutions combining industrial-grade displays with embedded computing. Available in 5 series (PT-M, PT-V, PT-F, PT-D, SPT) with panel mount, VESA, open-frame, and desktop configurations.
7" to 21.5" displays for smart factories, process monitoring, equipment integration, and control room applications. Featuring Power Failure Protection, CONTEC Fast Boot (8 seconds), built-in UPS battery, CFast solid-state storage, and IP65 waterproof protection.
Common Challenges in Industrial HMI Deployments
Factory environments present unique challenges that require purpose-built industrial touch panel computers designed for 24/7 operation
Consumer Displays Fail in Industrial Environments
Standard consumer monitors and commercial displays are not designed for factory conditions. Continuous 24/7 operation, temperature fluctuations between production zones, and vibration from nearby machinery can lead to premature display failures and unexpected downtime in production operations.
One Touch Technology Doesn't Fit All Applications
Factory operators often work with gloves, process control rooms require multi-touch gestures, and food processing needs easy-to-clean surfaces. Choosing the wrong touch technology—whether capacitive, resistive, or optical—can impact operator efficiency and workplace safety compliance.
Sudden Power Loss Causes Data Corruption and System Damage
Manufacturing facilities experience voltage fluctuations and momentary power interruptions. When industrial computers shut down unexpectedly, transaction data may be lost, database files can become corrupted, and equipment calibration settings may need to be reconfigured manually.
Dust, Moisture, and Contaminants Damage Standard Equipment
Food processing facilities require regular wash-downs with water and cleaning chemicals. Pharmaceutical clean rooms have strict contamination control. Standard computers and displays without proper sealing allow dust and moisture ingress, leading to short circuits and contamination compliance issues.
Traditional Hard Drives and SSDs Have Limited Lifespans
Industrial systems running 24/7 data logging applications face accelerated storage wear. Traditional hard drives fail from vibration and shock. Even solid-state drives (SSDs) have write cycle limitations. Storage failures result in system rebuilds, data recovery efforts, and production downtime.
Rigid Mounting Options Limit Installation Flexibility
Control panels require flush-mount installation, while workstations benefit from adjustable monitor arms. OEM equipment builders need open-frame designs for custom enclosures. A single mounting style forces compromises in operator ergonomics, equipment design, or installation complexity.
Slow Startup Delays Production After Maintenance or Power Events
Traditional industrial PCs require 60-90 seconds to boot Windows and launch HMI software. During shift changes, maintenance windows, or after power restoration, these delays accumulate. Operators wait for systems to start before production can resume.
Software Hangs Require Manual Intervention and Production Stops
Industrial control software can experience freezes from driver issues, memory leaks, or infinite loops. When HMI systems hang, operators must locate technical staff to manually reboot the equipment. Production stops until systems are restored.
Equipment Fails Without Warning Due to Thermal or Voltage Issues
Industrial computers operate in high-temperature environments or experience voltage irregularities. Without continuous monitoring, components overheat or voltage spikes occur without warning. Equipment fails suddenly, requiring emergency service calls and unplanned maintenance.
Equipment Tampering Risks Intellectual Property and Process Integrity
Manufacturing recipes, control parameters, and proprietary processes reside on HMI systems. BIOS passwords can be reset by determined individuals. Unauthorized access to equipment settings can alter production processes or expose confidential manufacturing information.
Industrial-Grade Features for Mission-Critical Reliability
CONTEC touch panel computers include purpose-built functions that address industrial challenges and deliver 24/7 operational reliability
Power Failure Protection System
BIOS-level voltage monitoring instantly detects power failures and blocks disk writes to prevent data corruption. Compatible with Windows IoT Write Filter for zero-corruption operation during unexpected shutdowns.
- Instant write block on power loss detection
- Final safe write before shutdown
- Zero data corruption, instant recovery
CONTEC Fast Boot (8-Second Startup)
BIOS optimization and HORM (Hibernate Once, Resume Many) technology reduce Windows startup from 60-90 seconds to approximately 8 seconds—75-85% faster than traditional industrial PCs.
- Skip non-essential POST checks
- Parallel hardware initialization
- Reduce shift change delays
Built-In UPS Battery (PT-M10WB-300 Exclusive)
NiMH battery provides 5+ minutes backup power with instant switchover (<10ms). Auto-shutdown utility saves work and performs graceful shutdown. Eliminates external UPS requirements.
- 5+ minute backup runtime typical
- Auto-shutdown Windows utility included
- All-in-one design, no external UPS
CFast Solid-State Storage (PT-F Series)
Dual slot-in CFast cards eliminate SATA cables and connectors. Slot 1 for OS (read-mostly), Slot 2 for data (write-intensive). Superior vibration/shock resistance for mobile applications.
- No cables—slot-in design
- Dual slots for OS/data separation
- Hot-swap capability (model dependent)
IP65 Waterproof Front Bezel (PT-M15SB-4600-G)
Aluminum construction with IP65-rated front bezel provides dust-tight and water jet protection. Suitable for wash-down environments in food processing, medical, and outdoor applications.
- Dust-tight (IP6X) complete protection
- Water jet resistant (IPX5) hose-down capable
- Food processing & pharmaceutical compliant
Three Touch Technologies for Any Application
Choose PCAP for glove-tuned multi-touch gestures, Analog Resistive for universal glove/stylus compatibility, or Optical for thickest glove support and 100% optical clarity.
- PCAP: Glove-tuned 10-point multi-touch
- Analog: Universal glove/stylus (any object)
- Optical: Thickest gloves, no overlay
Secure Boot USB Key (Physical Access Control)
BIOS-level physical authentication requires registered USB device to boot. System won't start without authorized key—stronger than BIOS passwords which can be reset. Protects recipes and parameters.
- BIOS-level physical access control
- Any USB device can be registered
- Recipe & parameter protection
BIOS Disk Copy Tool (OS-Independent Backup)
Clone entire disk to USB without booting Windows. Create compressed backup images or restore from USB. Perfect for deploying multiple identical systems or disaster recovery.
- No OS required—BIOS-level operation
- Full disk clone or compressed image
- Mass deployment & disaster recovery
Hardware Self-Diagnosis (Predictive Maintenance)
BIOS-level monitoring tracks voltage, temperature, fan speed, storage SMART data, and boot events. Remote access enables predictive maintenance before failures occur.
- Voltage, temperature, fan monitoring
- Storage SMART data & boot event logs
- Remote health check capability
Hardware Watchdog Timer (Automatic Recovery)
Software sends heartbeat signal every N seconds. If system hangs and heartbeat stops, hardware automatically reboots the PC. Critical for 24/7 unattended kiosks and remote monitoring.
- Automatic reboot on software freeze
- Hardware-based (independent of OS)
- Unattended 24/7 reliability
Touch Panel Computer Product Lineup
Choose from 5 series across panel mount, VESA mount, open-frame, desktop, and stand-PC configurations. Featuring flagship models with 13th Gen Intel processors, UPS battery backup, CFast storage, and IP65 waterproof protection.
PT-M Series - Panel Mount
Flush-mount integration for control panels and equipment operator stations

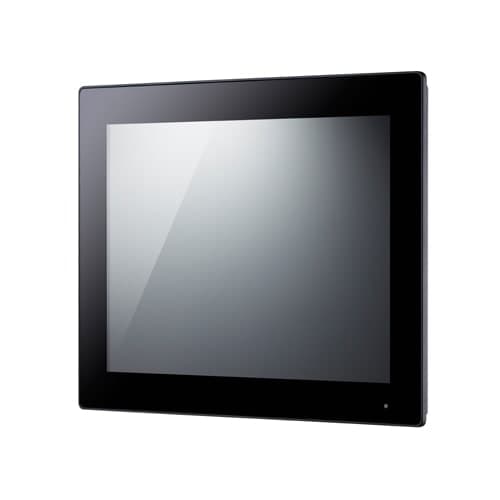

PT-M15SB-4600-G
15" XGA Panel Mount | 13th Gen Core | IP65
- 13th Gen Intel Core i9/i7/i5 Raptor Lake-S (up to 24-core)
- IP65 front bezel waterproof (aluminum construction)
- Dual 2.5GbE + Wi-Fi 6E/5G optional + TPM 2.0
- DDR5-4800 up to 64GB | Triple M.2 slots
PT-M10WB-300
10.1" WXGA Panel Mount | Built-In UPS
- Built-in UPS battery (5+ min backup, auto-shutdown)
- Vertical screen support (portrait mode)
- Intel Atom x6413E | PCAP glove-tuned touch
- Dual LAN + Power Failure Protection
PT-M07WA-310
7" XGA Panel Mount | Compact Fanless
- Ultra-compact 7" footprint (205Ă—162mm)
- Intel Atom x6425E 2.0GHz | Fanless cooling
- CFast solid-state storage + 2.5" SATA
- Small machine HMI applications
PT-V Series - VESA Mount
Flexible positioning with VESA 75Ă—75mm for monitor arms and wall mounts

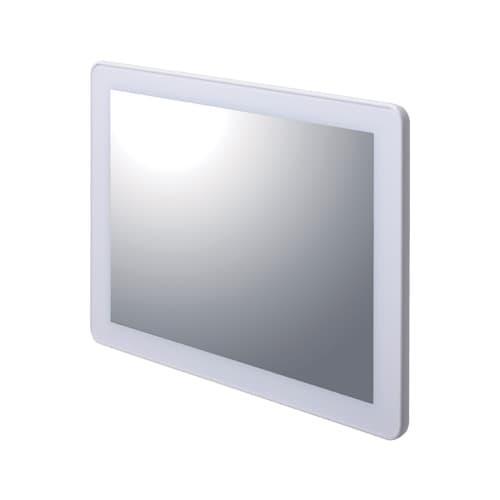

PT-V10WB-210
10.1" WXGA VESA Mount | FR Coating
- Anti-fingerprint FR coating (oil-repellent surface)
- Ultra-compact 23mm depth (VESA 75Ă—75mm compatible)
- Intel Atom E3940 | Dual LAN + USB3.2 Gen1Ă—3
- Food processing, medical, clean rooms
PT-V15WB-200
15.6" Full-HD VESA Mount | Large Display
- Largest portable VESA panel PC (1920Ă—1080 Full-HD)
- Intel Atom E3940 | PCAP 10-point multi-touch
- Wireless option available (PT-V15WB-200R)
- Process monitoring, supervisory SCADA
PT-M12SA-300
12.1" SVGA Panel Mount | Analog Touch
- Analog resistive 5-wire (any object: glove, stylus)
- Universal glove operation (thick gloves OK)
- Intel Atom x6413E | Dual LAN
- Legacy compatibility applications
PT-F Series - Open-Frame
OEM integration ready with rear-mount design for custom enclosures

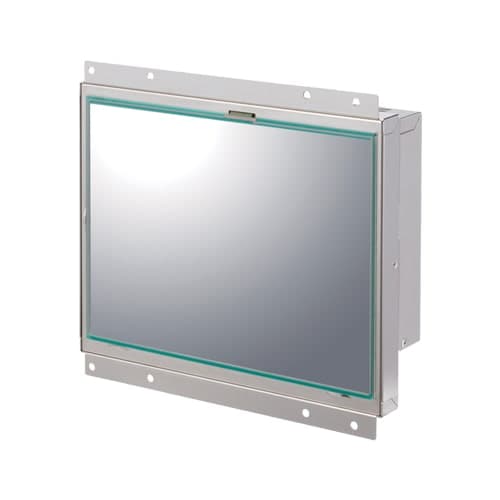

PT-F10SA-320
10.4" XGA Open-Frame | CFast Storage
- Dual CFast slots (OS Slot 1 + Data Slot 2)
- UL certified (USA/Europe safety compliance)
- Intel Atom x6425E 2.0GHz | PCAP glove-tuned
- Medical kiosks, test equipment OEM

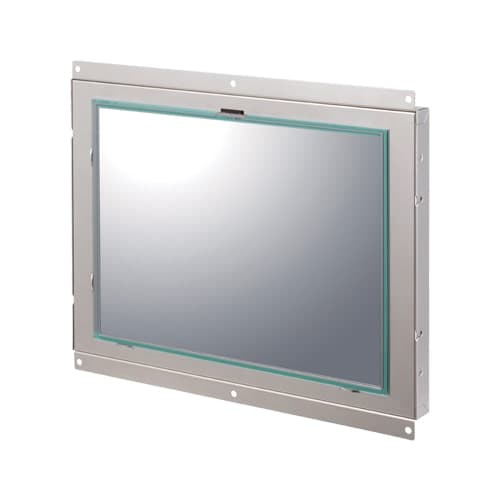

PT-F12SA-320
12.1" SVGA Open-Frame | Analog Touch
- Analog resistive touch (glove/stylus compatible)
- CFast solid-state storage + 2.5" SATA
- Intel Atom x6413E | Rear-mount metal frame
- OEM custom enclosure integration
PT-D Series - Desktop & Rugged
Portable desktop and military-grade rugged mobile solutions

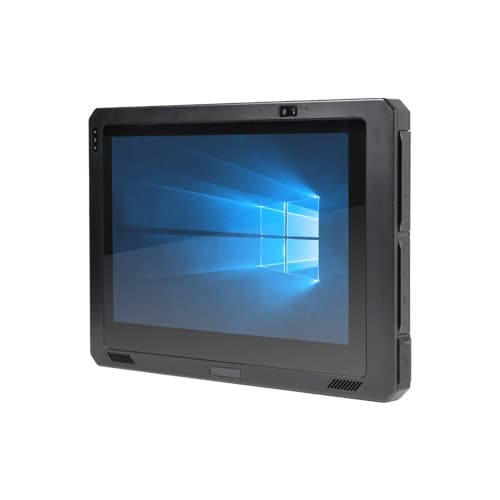

CT-RU101PC
10.1" Rugged Tablet | IP65 + MIL-STD
- MIL-STD-810G (26 drops from 4 feet, extreme temp)
- IP65 dust/water protection | -20°C to +60°C operation
- 9+ hour battery (hot-swappable) | 1000 cd/m² sunlight
- Barcode scanner, NFC, RFID | Docking station
PT-D07WA-110
7" XGA Desktop | Built-In NFC Reader
- Built-in NFC/RFID reader (employee check-in, access control)
- Portable desktop design with adjustable stand
- Intel Atom x6413E | PCAP touch | Fast Boot 8s
- Visitor management, time & attendance
SPT Series - STAND-PC
Large-format desktop touch computers with BTO customization

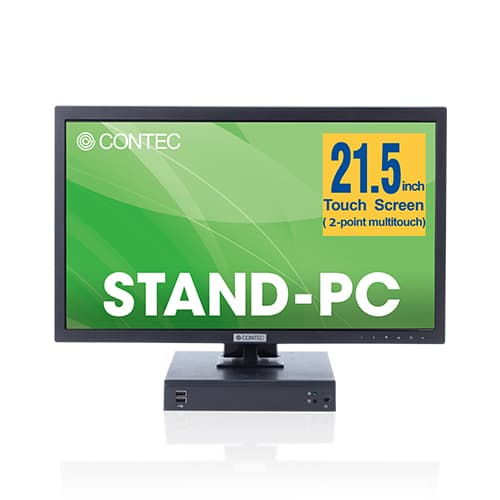

SPT-200A-22TP
21.5" Full-HD STAND-PC | Build-To-Order
- Largest display (21.5" Full-HD 1920Ă—1080)
- BTO: Choose CPU (Core i5/i3/Celeron), RAM, storage, OS
- IP54 dust/drip protection | VESA 75Ă—75mm adapter
- Training, supervisory control, production display
Explore complete lineup of 38+ models across all 5 series with detailed specifications
Features & Benefits for Industrial Applications
Purpose-built capabilities that deliver reliability, flexibility, and performance in demanding industrial environments
Three Touch Technologies
Choose PCAP for glove-tuned 10-point multi-touch gestures, Analog Resistive for universal glove/stylus compatibility, or Optical for thickest glove support without screen overlay.
- PCAP: Glove-tuned for rubber/latex gloves
- Analog: Universal any object (thick gloves OK)
- Optical: Thickest gloves, 100% clarity
7" to 21.5" Display Sizes
Complete size range from ultra-compact 7" for small machines to large 21.5" for supervisory control rooms. Full-HD 1920Ă—1080 available on 15.6" and 21.5" models.
- 7": Compact machine HMI (PT-M07WA-310)
- 10-15": Standard SCADA workstations
- 21.5": Large supervisory (SPT-200A)
Four Mounting Options
Panel mount for flush integration, VESA for flexible positioning, Open-Frame for OEM custom enclosures, and Desktop for portable workstations.
- Panel: Flush control cabinet integration
- VESA: Monitor arms, adjustable positioning
- Open-Frame: OEM custom enclosure freedom
IP65 Waterproof Protection
PT-M15SB-4600-G features aluminum construction with IP65-rated front bezel. Dust-tight and water jet resistant for wash-down environments in food processing and pharmaceuticals.
- IP6X: Complete dust-tight protection
- IPX5: Water jet (hose-down capable)
- Food/pharma FDA/GMP compliant
CFast Solid-State Storage
PT-F series offers dual CFast slots with no cables. Slot 1 for OS (read-mostly), Slot 2 for data (write-intensive). Superior vibration resistance for mobile and OEM applications.
- No SATA cables—slot-in design
- Dual slots for OS/data separation
- Vibration/shock resistant mobile use
Built-In UPS Battery (PT-M10WB-300)
Exclusive feature providing 5+ minutes backup power with instant switchover. Auto-shutdown utility prevents data loss. Eliminates external UPS requirements and costs.
- 5+ min backup, <10ms switchover
- Auto-shutdown Windows utility included
- NiMH battery, 3-5 year lifespan
CONTEC Fast Boot (8 Seconds)
BIOS optimization and HORM technology reduce Windows startup from 60-90 seconds to 8 seconds. Minimize shift change delays and maintenance downtime.
- 75-85% faster than traditional PCs
- Skip POST + HORM hibernate resume
- Reduce operator wait time significantly
Power Failure Protection
BIOS-level voltage monitoring detects power failures and blocks disk writes instantly. Prevents data corruption during unexpected shutdowns. Zero-corruption operation guaranteed.
- Instant write block on power loss
- Final safe write before shutdown
- Compatible with Windows IoT Write Filter
Hardware Watchdog Timer
Automatically reboots system if software hangs. Hardware-based recovery independent of OS state. Critical for 24/7 unattended kiosks and remote monitoring stations.
- Auto-reboot on software freeze
- Hardware-based (OS-independent)
- 1-255 second timeout configurable
BIOS Disk Copy Tool
Clone entire disk to USB without booting Windows. Create compressed backup images or deploy identical systems. Perfect for mass deployment and disaster recovery.
- No OS required—BIOS-level
- Full disk clone or compressed image
- Mass deployment to USB backup
Hardware Self-Diagnosis
BIOS-level monitoring of voltage, temperature, fan speed, storage SMART data, and boot events. Enable predictive maintenance before failures occur.
- Voltage, temp, fan monitoring
- Storage SMART & boot event logs
- Remote health check capability
Build-To-Order Customization
SPT-200A offers BTO options: Choose CPU (Core i5/i3/Celeron), memory (4/8/16GB), storage (64GB-500GB), and OS language. Optimize specifications for your application.
- CPU: Core i5/i3/Celeron selection
- Memory: 4GB/8GB/16GB options
- Storage: SSD 64-256GB or 500GB HDD
Proven Solutions Across 8 Industries
CONTEC touch panel computers deliver reliable HMI and SCADA solutions across manufacturing, process control, food service, healthcare, and more
Smart Factory HMI
Manufacturing Equipment Control & Monitoring
Machine control interfaces for CNC machines, injection molding, assembly lines, packaging equipment, and quality inspection stations. Requires glove operation, 24/7 reliability, and vibration resistance.
Recommended Models:
- PT-M15SB-4600-G: Flagship 13th Gen Core, IP65, edge computing
- PT-M10WB-300: UPS battery prevents data loss
- PT-F10SA-320: Open-frame for OEM equipment
Typical Deployments: CNC operator panels, injection molding HMI, assembly line stations, packaging control, inspection workstations
Process Control SCADA
Supervisory Control & Data Acquisition
Monitoring and control for water treatment plants, chemical processing, power generation, refineries, and building automation. Requires large displays and long-term reliability.
Recommended Models:
- PT-V15WB-200: Large 15.6" Full-HD VESA workstation
- SPT-200A: 21.5" supervisory control room
- PT-M15SB-4600-G: Edge SCADA with dual 2.5GbE
Typical Deployments: Water treatment SCADA, chemical plant control rooms, power generation monitoring, refinery operations, building management systems
Food Service Kitchen Display
Commercial Kitchen Order Management
Kitchen display systems for restaurants, commercial kitchens, hospitals, cafeterias, and catering. Requires easy cleaning, anti-fingerprint coating, and splash protection.
Recommended Models:
- PT-V10WB-210: Anti-fingerprint FR coating (easy cleaning)
- PT-M10WB-300: UPS battery for order data protection
- SPT-200A: Large display for multi-station kitchens
Typical Deployments: Restaurant kitchen displays, commercial kitchen order systems, hospital food service, cafeteria management, catering operations
Medical Equipment Healthcare
Patient Monitoring & Diagnostic Devices
Embedded computers for patient monitoring, diagnostic equipment, pharmacy automation, medical carts, and laboratory analyzers. Requires frequent disinfection and glove operation.
Recommended Models:
- PT-V10WB-210: Anti-fingerprint coating (chemical resistant)
- PT-F10SA-320: Open-frame OEM medical device integration
- CT-RU101PC: Mobile medical cart tablet (IEC 60601 available)
Typical Deployments: Patient monitoring displays, diagnostic equipment UI, pharmacy automation, medical cart computers, laboratory analyzers
Kiosks & Self-Service
Unattended Public Terminals
Self-service terminals for airport check-in, hotel lobbies, retail wayfinding, parking payment, and museum exhibits. Requires 24/7 unattended operation and watchdog recovery.
Recommended Models:
- SPT-200A: Large 21.5" public terminal display
- PT-M10WB-300: Compact vertical screen kiosk
- PT-F Series: Open-frame for custom kiosk enclosures
Typical Deployments: Airport check-in kiosks, hotel lobby terminals, retail wayfinding, parking payment systems, museum interactive exhibits
Warehouse & Logistics
Mobile Inventory & Asset Tracking
Mobile computers for inventory audits, receiving/shipping stations, pick-to-light systems, forklift terminals, and asset tracking. Requires ruggedness and barcode scanning.
Recommended Models:
- CT-RU101PC: Rugged mobile tablet with barcode scanner
- PT-D07WA-110: Desktop NFC for receiving/shipping
- PT-M10WB-300: Portable panel mount for carts
Typical Deployments: Mobile inventory audits, receiving/shipping stations, pick-to-light systems, forklift terminals, asset tracking
Transportation & Vehicle Systems
Mobile Vehicle Computing
In-vehicle computers for bus driver displays, taxi/rideshare dispatch, delivery route optimization, forklift HMI, and yard trucks. Requires vibration resistance and ignition power management.
Recommended Models:
- CT-RU101PC: MIL-STD-810G mobile rugged tablet
- PT-M10WB-300: UPS battery for ignition on/off
- PT-V10WB-210: Compact VESA for vehicle mount
Typical Deployments: Bus driver displays, taxi/rideshare dispatch, delivery routing, forklift HMI, yard truck systems
Energy Management & Renewable
Solar, Wind & Battery Storage Control
Monitoring and control for solar farms, wind farms, battery storage systems, microgrids, and EV charging stations. Requires remote operation and wide temperature range.
Recommended Models:
- PT-V15WB-200R: Wireless remote monitoring 15.6"
- PT-M15SB-4600-G: Edge computing for real-time control
- CT-RU101PC: Field service mobile tablet (-20°C to +60°C)
Typical Deployments: Solar farm monitoring, wind turbine control, battery storage systems, microgrid management, EV charging stations
Software Compatibility & Operating Systems
CONTEC Touch Panel Computers support multiple operating systems for industrial automation, embedded applications, and custom software deployments
Windows IoT Enterprise LTSC
Long-Term Servicing Channel for Industrial
Windows 10/11 IoT Enterprise LTSC is the recommended operating system for industrial touch panel computers requiring 10-year support lifecycle, embedded lockdown features, and stable platform without feature updates.
Best For: Smart factory HMI 24/7 operation, process control SCADA, medical equipment IEC 62304, kiosks, any application requiring 10-year maintenance window
Windows 10/11 Pro
Standard Professional Edition
Standard Windows 10 or Windows 11 Professional provides familiar desktop environment for general-purpose industrial computing, office automation, and applications requiring latest Windows features.
Best For: Office automation workstations, engineering design stations requiring latest CAD/CAM, non-critical monitoring with flexible update schedules
Linux & Open-Source OS
Ubuntu, Debian, CentOS, Yocto
Linux support available for cost-effective deployments, open-source enthusiasts, and custom embedded applications. Intel Atom and Core processor compatibility with major Linux distributions.
Best For: Open-source SCADA (OpenSCADA), custom embedded Linux (Qt/GTK+ HMI), cost-sensitive deployments, edge computing with containers
Custom OS & Build-To-Order
VxWorks, QNX, Custom Linux, Bare Metal
OEM customers and specialized applications can request custom operating system installations or order systems without pre-installed OS (bare-metal). BTO service available for SPT-200A and select models.
Contact: Custom OS installations require BSP validation. Request BTO quotation through authorized CONTEC distributor (Tandem Technologies Indonesia)
Compare Touch Panel Computer Specifications
Compare key specifications across CONTEC's most popular touch panel computer models. Select the right display size, mounting type, processor, and features for your application.
| Model | Display | Touch | Processor | Memory | Storage | Mounting | Key Features | Protection | Temp Range | Ideal Application |
|---|---|---|---|---|---|---|---|---|---|---|
| PT-M15SB-4600-G Flagship 15" IP65 FLAGSHIP | 15" XGA 1024×768 350 cd/m² | PCAP 10-point Glove-tuned | Intel Core i9/i7/i5 13th Gen Raptor Lake | DDR5-4800 Up to 64GB | Triple M.2 + SATA Wi-Fi/5G/NVMe RAID | Panel Mount 335×271mm cutout | • IP65 waterproof bezel • Dual 2.5GbE networking • TPM 2.0 security • Wi-Fi 6E / 5G optional | IP65 | 0°C to +50°C | AI Vision Processing |
| PT-M10WB-300 Built-In UPS Battery UPS BATTERY | 10.1" WXGA 1280×800 400 cd/m² | PCAP 10-point Glove-tuned | Intel Atom x6413E Elkhart Lake 1.5GHz | DDR4-3200 Up to 16GB | M.2 NVMe + SATA Dual storage | Panel Mount Vertical screen OK | • 5+ min backup power • Auto-shutdown utility • Dual 1GbE LAN • Fast Boot 8s | IPX2 | 0°C to +50°C | Uninterrupted Operations |
| PT-M07WA-310 Compact 7" Fanless | 7" XGA 1024×768 400 cd/m² | PCAP 10-point Glove-tuned | Intel Atom x6425E Elkhart Lake 2.0GHz | DDR4-3200 Up to 16GB | CFast + SATA Vibration resist | Panel Mount 184×141mm cutout | • Ultra-compact design • Fanless cooling • Dual 1GbE LAN • Power Failure Protection | IPX2 | 0°C to +50°C | Space-Constrained HMI |
| PT-V10WB-210 Anti-Fingerprint VESA ANTI-FINGERPRINT | 10.1" WXGA 1280×800 400 cd/m² | PCAP 10-point FR coating | Intel Atom E3940 Apollo Lake 1.6GHz | DDR3L-1866 Up to 8GB | M.2 SATA + 2.5" Dual storage | VESA 75×75mm Monitor arm OK | • Oil-repellent coating • Ultra-compact 23mm • Dual 1GbE LAN • USB3.2 Gen1×3 | IPX2 | 0°C to +50°C | Clean Room Display |
| PT-V15WB-200 Large 15.6" Full-HD | 15.6" Full-HD 1920×1080 300 cd/m² | PCAP 10-point Multi-touch | Intel Atom E3940 Apollo Lake 1.6GHz | DDR3L-1866 Up to 8GB | M.2 SATA + 2.5" Dual storage | VESA 75×75mm Monitor arm OK | • Largest portable VESA • Full-HD resolution • Dual 1GbE LAN • Wireless option (PT-V15WB-200R) | IPX2 | 0°C to +50°C | Control Room Display |
| PT-F10SA-320 OEM Open-Frame CFast DUAL CFAST | 10.4" XGA 1024×768 400 cd/m² | PCAP 10-point Glove-tuned | Intel Atom x6425E Elkhart Lake 2.0GHz | DDR4-3200 Up to 16GB | Dual CFast OS + Data slots | Open-Frame Custom enclosure | • Dual CFast storage • UL certified • Rear-mount frame • Fast Boot 8s | IPX2 | 0°C to +50°C | Equipment Integration |
| PT-M12SA-300 Analog Resistive | 12.1" SVGA 800×600 350 cd/m² | Analog 5-wire Any object | Intel Atom x6413E Elkhart Lake 1.5GHz | DDR4-3200 Up to 16GB | M.2 NVMe + SATA Dual storage | Panel Mount 282×219mm cutout | • Universal touch (any object) • Thick gloves OK • Stylus compatible • Dual 1GbE LAN | IPX2 | 0°C to +50°C | Harsh Environment |
| PT-D07WA-110 Desktop NFC Reader NFC | 7" XGA 1024×768 400 cd/m² | PCAP 10-point Multi-touch | Intel Atom x6413E Elkhart Lake 1.5GHz | DDR4-3200 Up to 16GB | M.2 NVMe + SATA Dual storage | Desktop Stand VESA adapter opt | • Built-in NFC/RFID • Employee check-in • Portable desktop • Fast Boot 8s | IPX2 | 0°C to +50°C | Access Control |
| CT-RU101PC Rugged Tablet RUGGED | 10.1" WXGA 1280×800 1000 cd/m² | PCAP 10-point Sunlight OK | Intel Core i5/i3 Whiskey Lake 8th Gen | DDR4-2400 8GB or 16GB | 128GB or 256GB SSD | Mobile Tablet Docking opt | • MIL-STD-810G (26 drops) • 9+ hr battery (swap) • Barcode/NFC/RFID • -20°C to +60°C | IP65 + MIL-STD | -20°C to +60°C | Field Operations |
| SPT-200A-22TP 21.5" STAND-PC BTO | 21.5" Full-HD 1920×1080 250 cd/m² | PCAP 10-point Multi-touch | BTO Options: i5 / i3 / Celeron | BTO: 4GB/8GB/16GB | BTO: 64-256GB SSD / 500GB HDD | Desktop Stand VESA 75×75mm | • Build-To-Order custom • Largest display (21.5") • IP54 dust/drip • Multi-language OS | IP54 | 0°C to +40°C | Office Automation |
Note: Specifications subject to change without notice. View complete technical specifications, certifications, and I/O interfaces on individual product pages.
Expert Answers to Common Questions
Find answers to common questions about industrial touch panel computers, mounting options, touch technologies, and CONTEC unique functions
What's the difference between Panel Mount, VESA Mount, and Open-Frame?
Panel Mount (PT-M): Requires rectangular cutout in equipment panel. Front bezel sits flush. Best for CNC machines, control cabinets. Rigid mounting resists vibration.
VESA Mount (PT-V): Uses standard 75Ă—75mm mounting pattern. Compatible with monitor arms. Allows ergonomic positioning. Best for workstations, inspection stations.
Open-Frame (PT-F): No enclosure—only frame + display. Customer builds custom enclosure. Best for OEM equipment, medical devices, kiosks.
Can PCAP (Capacitive) Touch Work with Gloves?
Yes! CONTEC uses glove-tuned PCAP controllers optimized for industrial gloves:
- Thin rubber/latex gloves (medical, food): Works reliably
- Medium-weight work gloves (cotton, polyester): Works reliably
- Thick leather/winter gloves: May work inconsistently
For thick gloves, consider Analog Resistive (PT-M12SA-300) which works with ANY object including thick gloves.
What are the benefits of CFast storage versus standard SSD?
CFast Advantages:
- No cable connections (slots directly like SD card)
- Superior vibration/shock resistance (mobile applications)
- Dual slot architecture (PT-F10SA-320): Slot 1 for OS, Slot 2 for data
- Hot-swap capability on some models
- Industrial temperature range (better than consumer SSDs)
Best for mobile/portable applications, high-vibration environments, and OEM equipment integration.
What's the difference between Windows IoT Enterprise and standard Windows?
Windows IoT Enterprise LTSC:
- 10-year support lifecycle (2019 LTSC → 2029 security updates)
- No feature updates (only security patches)
- Embedded lockdown features (Write Filter, Keyboard Filter)
- Clean installation (no consumer apps like Cortana)
- Device-based licensing (not user-based)
Recommended for 24/7 industrial automation, medical devices, kiosks, and any application requiring predictable 10-year maintenance window.
How long does the UPS battery last in PT-M10WB-300?
Backup Duration: 5+ minutes typical runtime at normal load, sufficient for graceful system shutdown (30-60 seconds needed).
Battery Technology: NiMH (Nickel-Metal Hydride) rechargeable, automatic recharging when AC power present.
Battery Lifespan: 3-5 years typical life (charge cycle dependent). Replacement service available.
Includes Windows auto-shutdown utility that monitors battery status and performs safe shutdown to protect data integrity.
Can I install my own custom operating system?
Yes! Order "No OS (Bare Metal)" BTO option for customer OS installation.
Supported Custom OS:
- Linux: Ubuntu 20.04/22.04 LTS, Debian 10/11, CentOS 7/8 (EETI eGalax touch driver confirmed)
- Real-Time: VxWorks, QNX (BSP availability confirmation needed)
- Custom: Yocto Project embedded Linux
Contact technical support for driver compatibility matrix before ordering. Some CONTEC functions (Power Failure Protection, Fast Boot) optimized for Windows.
How does CONTEC Fast Boot achieve 8-second startup?
Technology:
- BIOS optimization: Skip non-essential POST memory checks
- HORM (Hibernate Once, Resume Many): Windows hibernates to disk, subsequent boots restore from hibernate (not full boot)
- SSD/CFast storage required (HDD too slow)
- Minimal startup services configuration
8-Second Breakdown: BIOS POST 2-3s + Windows resume 4-5s + Drivers 1-2s = ~8s total (vs 60-90s traditional PC).
Reduces shift change delays and maintenance downtime significantly.
Are touch panel computers suitable for outdoor installations?
Limited outdoor use: Most models operate 0°C to +50°C (outdoor requires protective enclosure).
Best Options:
- CT-RU101PC: Rugged tablet rated -20°C to +60°C, 1000 cd/m² sunlight-readable, IP65 + MIL-STD-810G (purpose-built outdoor mobile)
- PT-M15SB-4600-G + NEMA Enclosure: IP65 front bezel, requires NEMA 4X outdoor enclosure with heater/AC
Direct outdoor exposure without enclosure not recommended (temperature, sunlight readability, humidity challenges). Consult for complete outdoor enclosure solution.
PT-M10WB-300 vs PT-M15SB-4600-G - which should I choose?
PT-M10WB-300 - Best for Power Protection:
- Built-in UPS battery (5+ min backup, only model with this)
- 10.1" WXGA display, Atom x6413E processor
- Vertical screen support (portrait orientation)
- Best for: POS terminals, kiosks, medical equipment, unstable power
PT-M15SB-4600-G - Best for High Performance:
- 13th Gen Intel Core i9/i7/i5 (up to 24-core, 50Ă— faster than Atom)
- IP65 waterproof bezel, 15" display
- Dual 2.5GbE networking, DDR5-4800 up to 64GB
- Best for: Smart factory edge computing, AI inference, washdown environments
What does BTO (Build-To-Order) mean for SPT-200A?
BTO allows customizing hardware specifications instead of fixed configurations:
SPT-200A Customization Options:
- CPU: Core i5-6500TE / i3-6100TE / Celeron G3900TE
- Memory: 4GB / 8GB / 16GB DDR4-2133
- Storage: 64GB/128GB/256GB SSD or 500GB HDD
- OS: Windows 10 IoT Enterprise LTSC (EN/JP/CN/KR) or None
Benefits: Cost optimization (pay only for needed specs), application-specific configuration. Lead time 2-4 weeks. Contact distributor for BTO quotation.
How do I choose between PCAP, Analog Resistive, and Optical touch?
PCAP (Capacitive) - Most Popular:
- 10-point multi-touch gestures (pinch-zoom, rotate)
- Smooth glass surface (easy cleaning, disinfectant compatible)
- Works with thin/medium gloves (CONTEC glove-tuned controllers)
- Best for: Modern HMI, SCADA, food processing, medical
Analog Resistive - Universal:
- Works with ANY object (thick gloves, tools, stylus, pen)
- Water tolerant (droplets don't cause false touches)
- Single touch only (no multi-touch gestures)
- Best for: Heavy-duty gloves, stylus applications, wet environments
Optical (Infrared): Thickest glove support, 100% optical clarity, large screen sizes. Check product specs for availability.
What certifications do CONTEC touch panel computers have?
Standard Certifications:
- CE (Europe): EMC Directive 2014/30/EU, RoHS 2011/65/EU
- FCC (USA): Class A/B emissions (industrial use)
- UL (PT-F10SA-320): UL60950-1 safety certification
- MIL-STD-810G (CT-RU101PC): Military-grade drop/shock/vibration (26 drops from 4 feet)
- IP Ratings: IP65 (PT-M15SB-4600-G, CT-RU101PC), IP54 (SPT-200A), IPX2 (most models)
Medical certification (IEC 60601-1) available on select models (CT-RU101PC). Contact distributor for certification documentation and regional compliance requirements.
Can't Find Your Answer?
Contact our technical support team for personalized guidance and application consultation
Contact Technical SupportReady to Explore CONTEC Touch Panel Computers?
Browse our complete product lineup, download technical documentation, or speak with our experts to find the perfect solution for your industrial automation needs
